Designs Available Again

58' Power Catamaran



58' catamaran in composite construction.

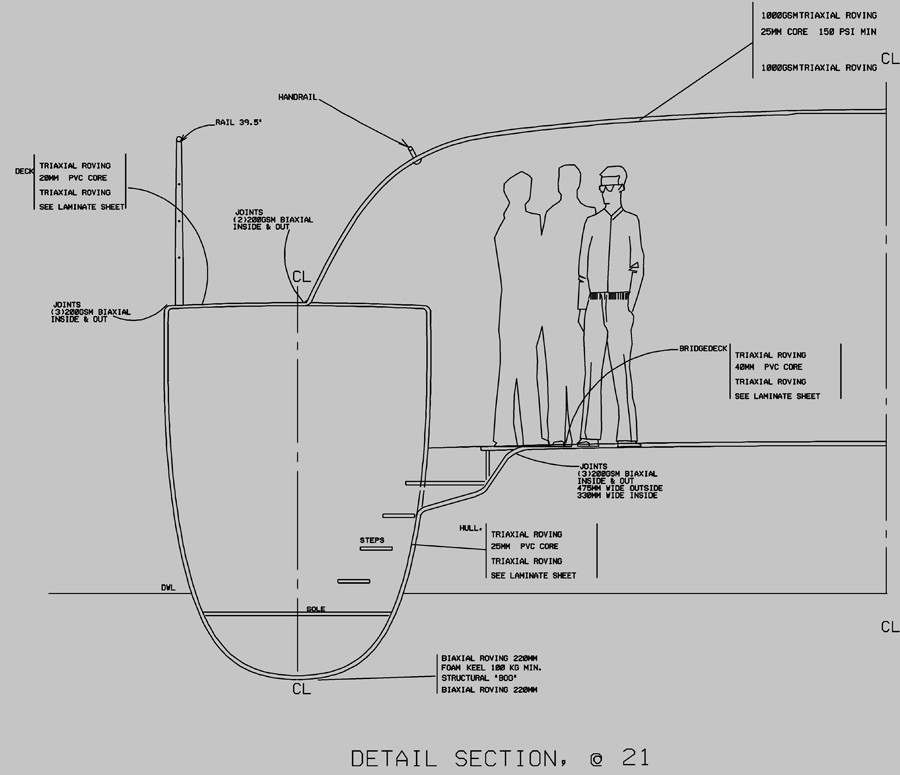

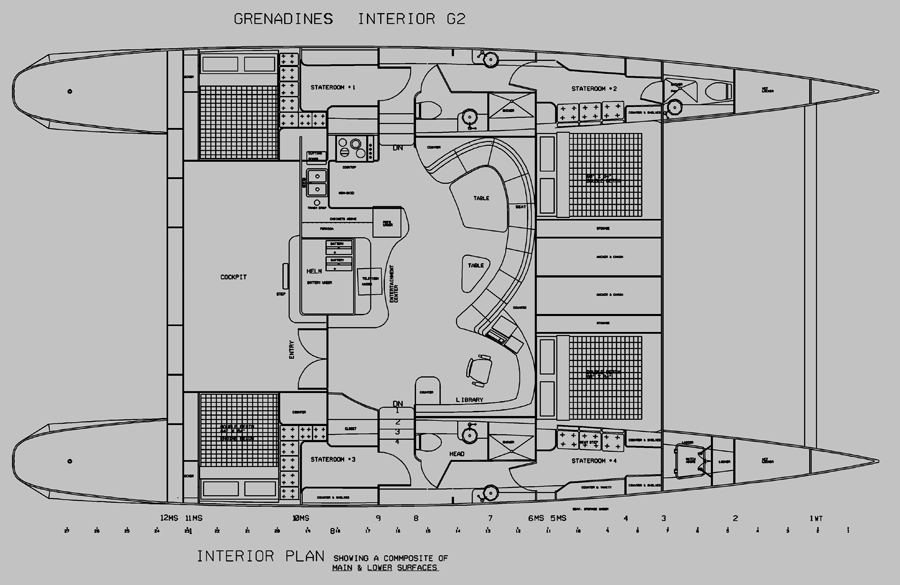

This 58' cat is one of the original Sunchaser powercat designs.  The plans are available again.  Plans are available for both cruising and charter versions. The SC58 hulls give great fuel economy. They are very easily driven.  The rounded hull sections and narrow waterplane allow a very comfortable ride.  Top speed will be around 25 knots.  Compare the bridge-deck clearance to its competitors.  The laminate design is still years ahead of the usual designs out there now. The interior pictures are from the USCG certified sailing versions.

It can be USCG certified for 49 passengers.  Molds may be available to speed up the construction process.

psp1.jpg (47529 bytes)psp2.jpg (45416 bytes)psp4.jpg (35901 bytes)58 PWR01.JPG (42429 bytes)PILOTHO1.JPG (20199 bytes)side.jpg (20898 bytes)57cat_2side main helm.jpg (80336 bytes)

57cat_aft cabin.jpg (636725 bytes)57cat_aft cabin2.jpg (552951 bytes)57cat_Ent ctr.jpg (72473 bytes)57cat_pft side main helm.jpg (73863 bytes)



Length overall: 58'-2" (17.73 m)
Length at waterline: 57'-4" (17.47 m)
Beam: 30'-11" (9.42m)
Draft: 3'-1" (0.94 m)
Weight: 21,550 lb (9,775 kg)
Displacement: 29,780 lb (13,508 kg)
Bridgedeck: 3'-1" (0.94 m)
Power: Yanmar 4L-DTE series

Buy:

Study plans:  $50
Bid sets:  $500
Full plans:
$5500
