Rapid-Construction Multihulls

37' Cruising Trimaran

37' cruising trimaran in developed plywood.

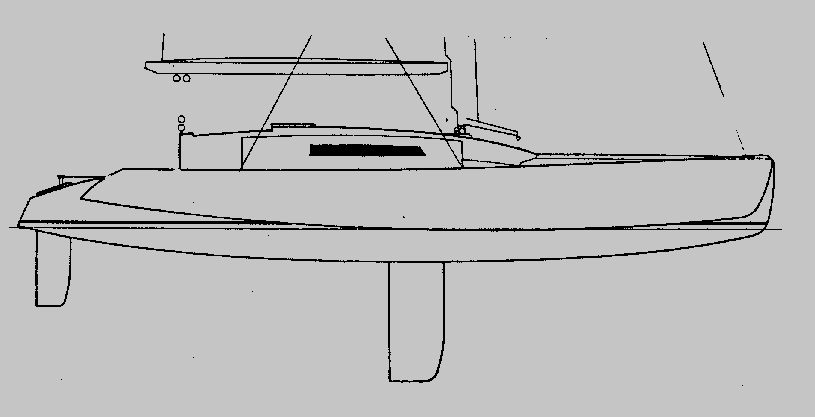

The use program of this 37' cruising trimaran is a very high performance trimaran that is also very easy to build.  It has the expected features in my design line; big amas way out there, deep board and rudder, and sophisticated sail-handling.  While this was an early design, the model has been kept up with the latest innovations.  The original hand drawings are as below, but all the lines and components are recent computer drawings.
37sideg.gif (4891 bytes)37'topg.gif (8409 bytes)37intg.gif (22043 bytes)37foreg.gif (7581 bytes)37triclsecg.gif (11317 bytes)
Length overall: 37'-9" (11.54 m)
Beam: 29'-9" (9.1 m)
Draft: 1'-7"/7'-9" (0.49/2.36m)
Displacement: 6.550 lbs (2.971 kg)
Sails - Main: 568 sqft. (53.8 sqm.)
Blade: 197 sqft. (18.3 sqm.)
Spinnaker: 875 sqft. (81.3 sqm.)
Displacement: 6.550 lbs (2.971 kg)

Buy:

Study plans:  $50
Bid sets:  $500
Full plans:  $2900
