Economy Multihull Cruisers

30' Demountable Catamaran

30' demountable alloy-tube catamaran in developed plywood or composite.

This 30' demountable catamaran offers great performance, an easy build and full standing headroom. The aluminum tubes help with rapid construction.

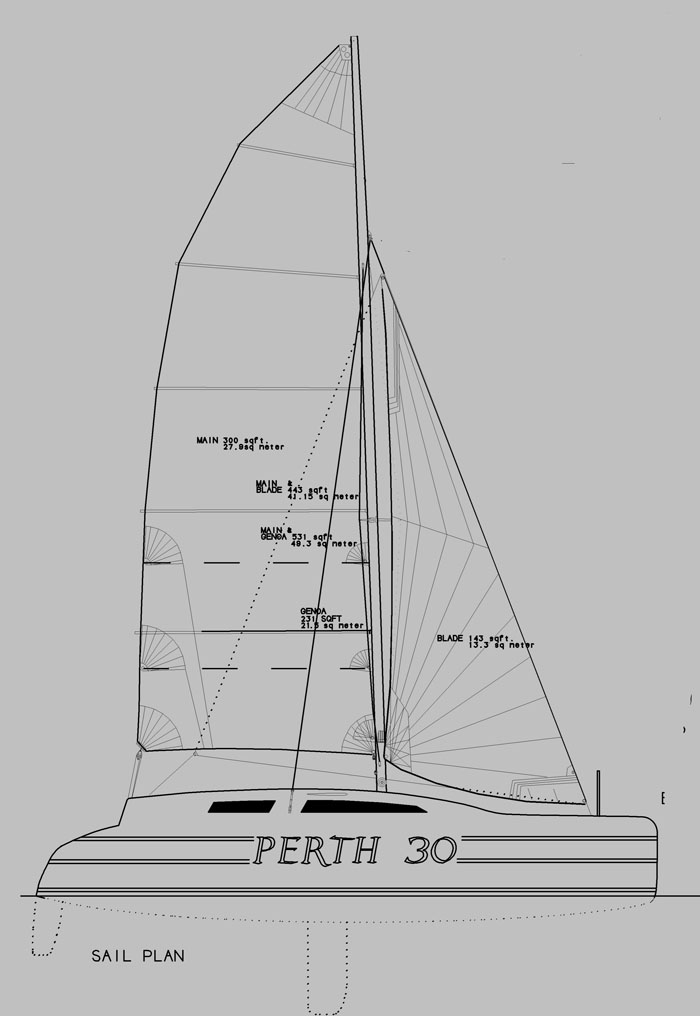

The vessel above has the hard sheers option instead of the rounded shears. The mainsail has been drawn for both with a boom and boomless. The mast is a rotating extrusion. Notice the long boards that help it point and tack like crazy.

See the sliding tube option to get the cat narrow on the water.

Length overall: 30'-1" (9.2 m)
Beam: 20'-2" (6.16 m)
Draft: 1'-4"/5'-9" (4 m/1.75 m)
Weight: 2,250 lb (1,020 kg)
Displacement: 4,800 lb (2,177 kg)
Bridgedeck: 2'-11" (0.89m)
Sails - Main: 300 sqft. (27.8 sqm.)
Blade 143 sqft. (13.3 sqm.)
Genoa 231 sqft. (21.8 sqm.)

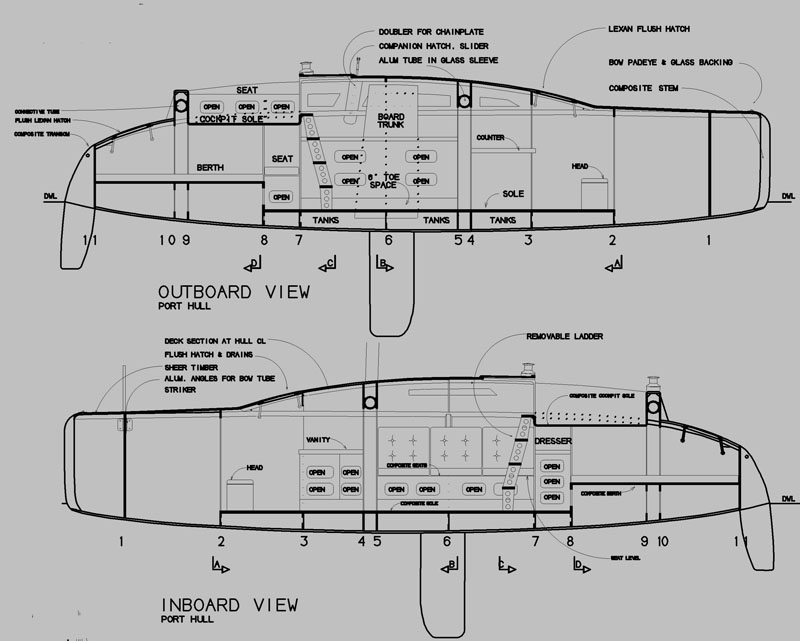

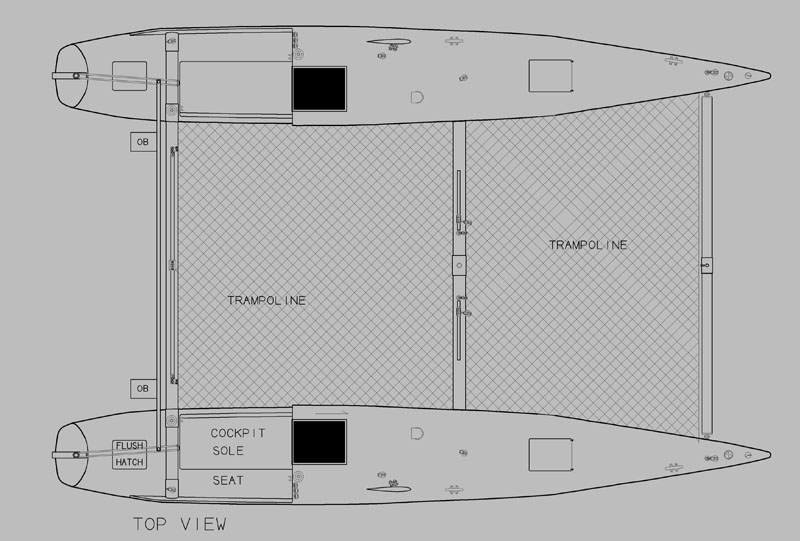

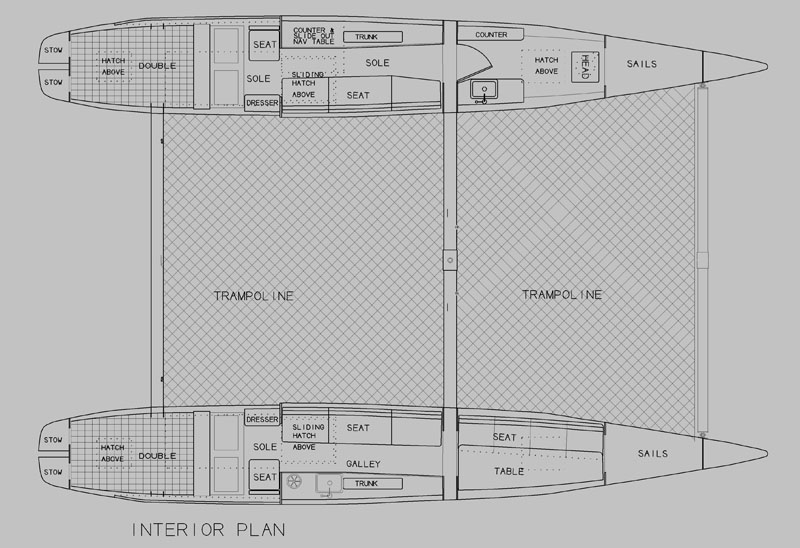

T30catsail.JPG (102191 bytes)T30cattop.JPG (113010 bytes)T30INT.JPG (130730 bytes)T30catclsec.JPG (115881 bytes)

Buy:

Study plans:  $100
Email Study Plans:  $50
Full plans:
$2150

All study plans are now available for email delivery at half the price of paper plans!
