Passenger Ferries

85' Passenger Ferry Catamaran

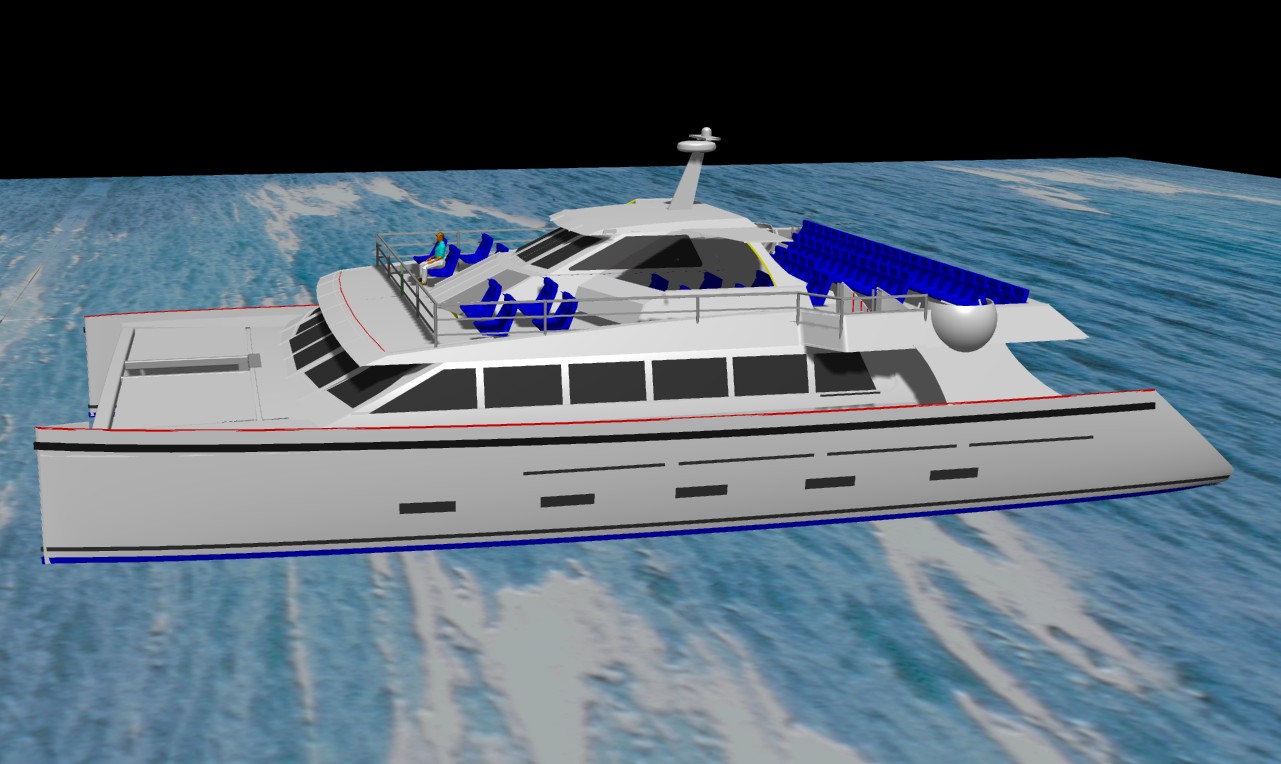

An 85' passenger ferry catamaran in composite materials.
This 85' passenger ferry catamaran design is designed to carry up to 250 passengers on short trips. In the US the passenger limit would be 149.   The very efficient sailing cat type hulls take very little power and generate minimal wake.  980 hp per side gives 32 knots speed.   Construction is foam/glass.

This catamaran design takes fullest advantage of platen flat panel construction with a vacuum bagging table.  The house is assembled from flat panels, like a tilt-up building.  There is no faster way construct composite cats, this side of having the molds already. See the link tiltup.

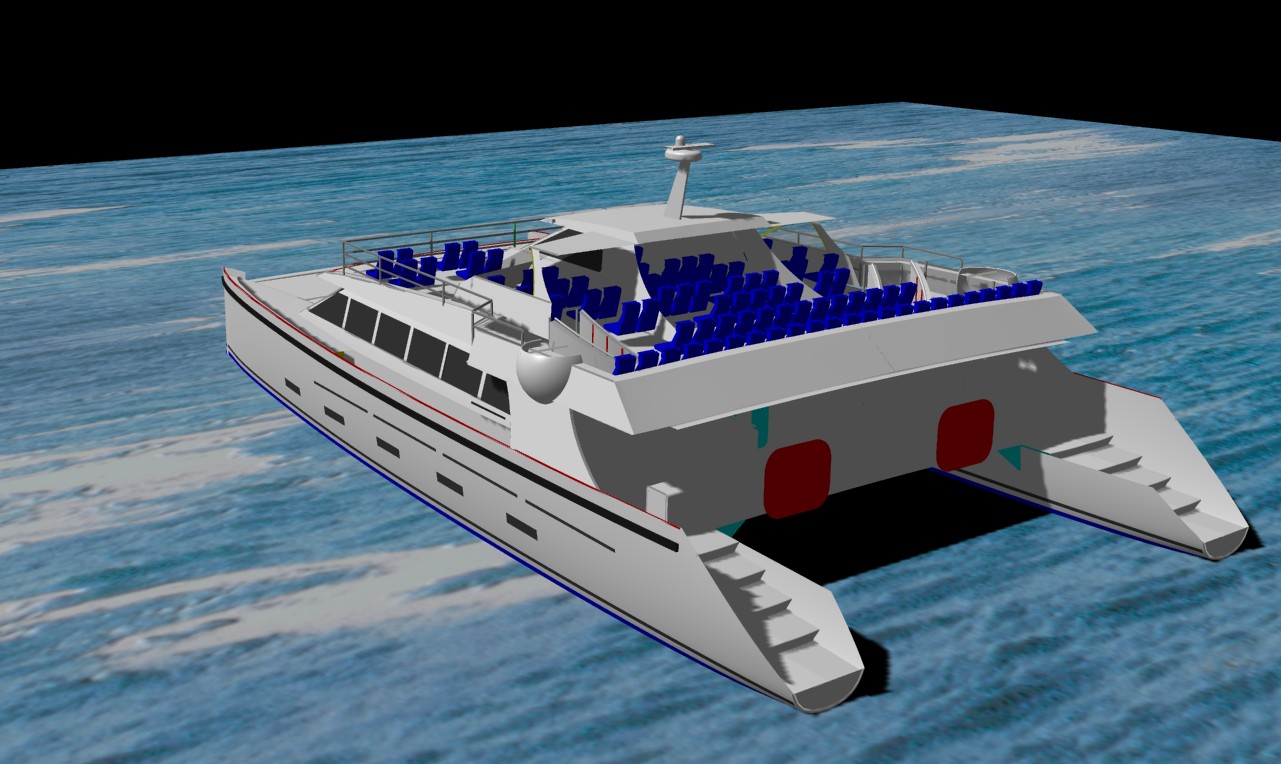

85ferryM15aftpsp1.jpg (184203 bytes)85ferryM15inpsp2.jpg (184815 bytes)85ferryM15psp1.jpg (239601 bytes)85ferryM15psp3.jpg (265464 bytes)85ferrym15side.jpg (77914 bytes)
Length overall: 84'-11" (25.91 m)
Beam: 42'-0" (12.8 m)
Draft: 3'-4" (1.01 m)
Weight: 59,140 lb (26,825 kg)
Displacement: 91,196 lb (41,366 kg)
Power: Man 12V-1360 hp

Buy:

Email Study Plans:  $200
Study plans:  $300
Full plans:  $44000 with conditions

All study plans are now available for email delivery at half the price of paper plans!
