Daysailor Multihulls

23' Daysailor Trimaran

A  4-person developed-plywood trimaran.

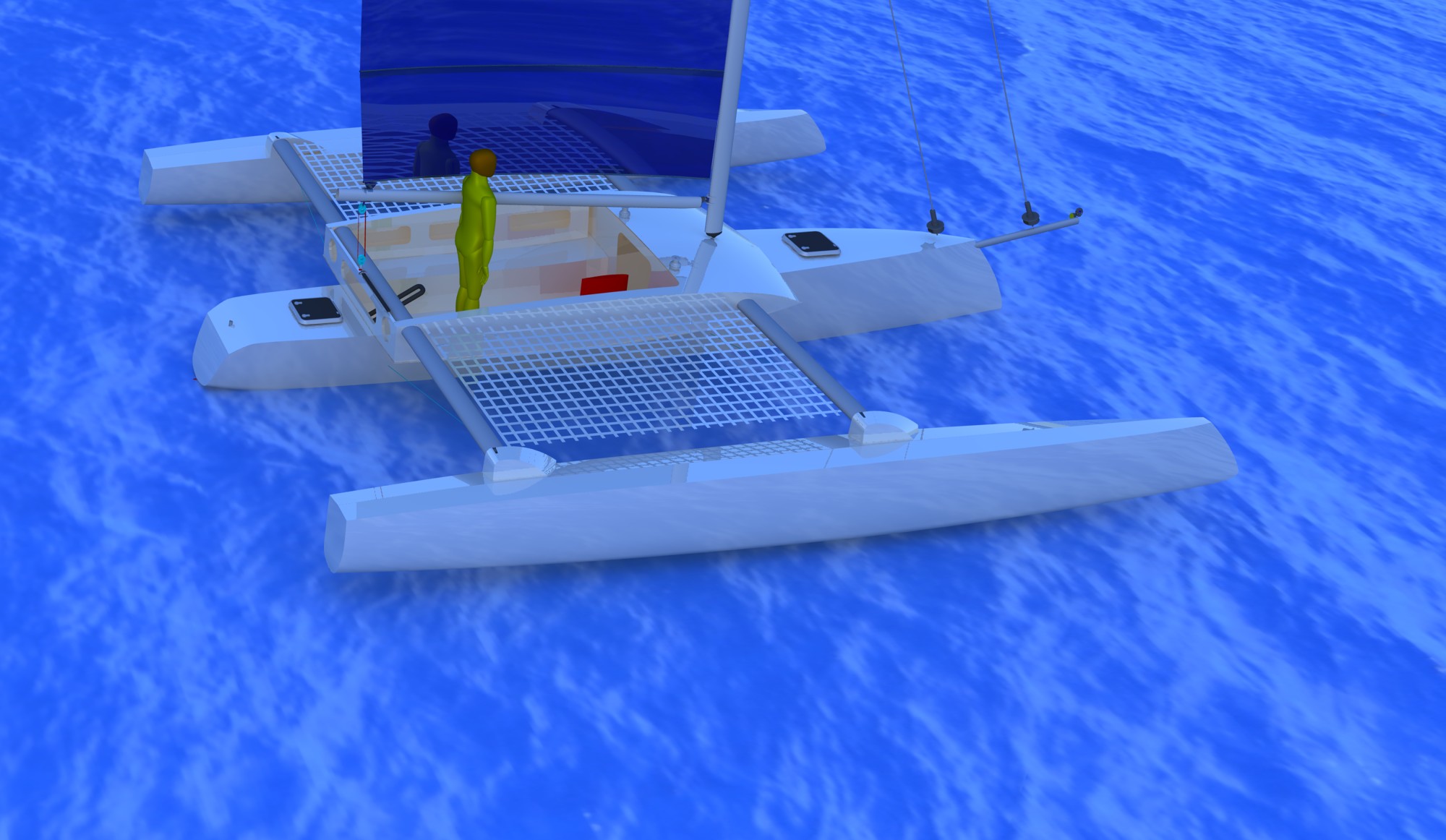

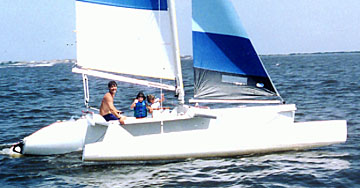

This trimaran can carry 4 people with gear on speedy day trips.  It can use many available beach-cat rigs. Shown is one with beach-cat hulls as amas also.  The stock amas are larger.  Gear can be put in a protected cuddy or inside the front of the main hull.  It is built with the rapid plywood/epoxy CM construction.

It can be built to get narrow rapidly with the sliding-tube Mono-slip connectives option.

The latest update is done. Larger, longer amas, reverse bows and can have ama rudders.

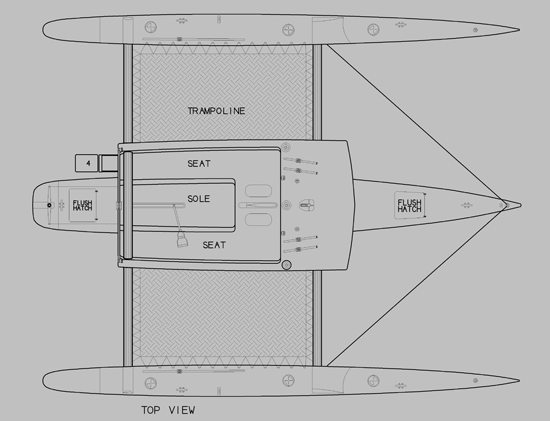

23daytrig.gif (176023 bytes)23DAYtrisailg.gif (69032 bytes)23DAYtriTOPg.gif (56534 bytes)23DAYtrisecg.gif (46692 bytes)
Length overall: 23' 7" (7.2 m)
Length at waterline: 23' 4" (7.11 m)
Beam: 18' 6" (5.64 m)
Draft: 11"/4' 8" (.28/1.42 m)
Weight: 800 lb (363 kg)
Displacement: 1,820 lb (825.5 kg)
Sails: main: 158 sqft. (14.63 sqm)
jib: 67 sqft. (6.22 sqm)
spinnaker: 161 sqft. (14.93 sqm)
upwind total: 225 sqft. (20.9 sqm)


Email study plans:  $50
Study plans:  $100
Full plans:  $900

All study plans are now available for email delivery at half the price of paper plans!
